Compact 45-50-65
HDG Compact 45-50-65 Wood Chip & Pellet Spare Parts Diagrams
Spare Parts Diagram download version.
Models C25, C35, C40, C45, C50, C65 C80 C95
::::Download Copy:::::
Read more
Diagrams
Categories
HDG pellet delivery system transfer fuel from the bulk store either directly to the boilers feed system for via a second delivery system such as vacuum transfer.
HDG FRA Delivery auger for wood chip, shavings and pellets
Pellet store vacuum transfer tubes and rubber shatter mats
Two high quality geared motors, mechanical level sensor, steel pellet container for 100 kg pellets with service opening, suction turbine 240 V/50 Hz with noise protection cover, rotary sluice (type TBZ 80) and stoker auger and connecting flange, thermal flow protection installed as a water extinguisher.
HDG TBZ90 Spare Parts Diagrams
HDG feeding system TBZ 150 for HDG Compact 25-80 Compact 100-200for chips (up to G50), shavings, shaving briquettes, pellets.
Spare Parts

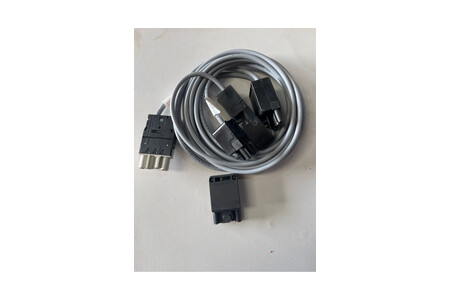

Connection set PSB
C100 - C200

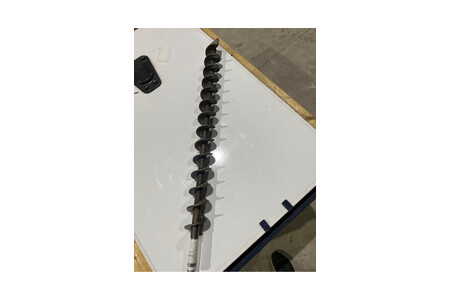

Stoker worm
TBZ 80
Carbon brushes set
Fit TBZ80 vacuum motor
(2 pieces.)

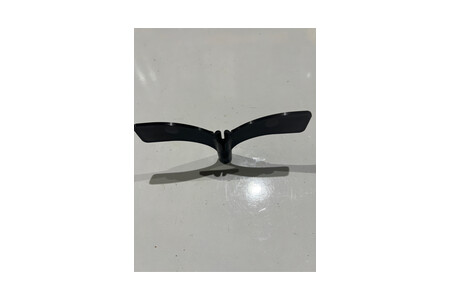

Paddle for fill sensor
Paddle only
Flange gasket
HDG PM15 / 25 / PSB / TBZ90
Connection set PSB
C25 - C80
Capacitor 6 µF
Rotary wheel with casing cpl.
TBZ 80
Geared motor 0,05 kW
FGA 4.5 upm, 230V
FGA103 / 4DEK63as-4
Flange gasket
Nefalit
Geared motor 0,18 kW
21 upm
230 / 400V
FOR SINGLE PHASE MOTOR PLEASE ORDER HDG33197
Vane Sensor Level indicator
Replacement paddle indicator for pellet level detection.
